Exquisitely cut gemstones are so often centerpieces in custom jewelry design. Have you ever wondered how artisan jewelers are able to work their magic so precisely on these challenging materials? Daniel Stair of Custom Gemstones has graciously allowed CustomMade to post his tutorial “The Cutting of a Sapphire” on our blog. He’ll take us through his process step-by-step.
The photo above is of a Songea sapphire I'll be cutting on this page. As you can see, this stone is not quite round, so we'll fix that by preforming it a bit.
Here's a photo of my Facetron faceting machine. Not too hi-tech, but very precise.

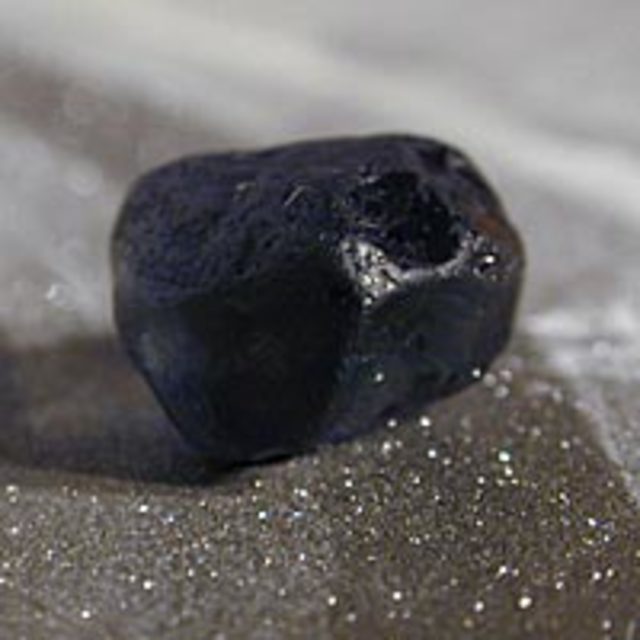

Here's a close-up of the sapphire sitting on the diamond impregnated steel lap (or disc). You can see the diamond crystals sparkling. Since diamond is the only natural substance harder than that sapphire, diamond is what it must be cut with.
Here's a close-up of the stone on the end of the dop.
With the lap spinning and water dripping on it that serves as a coolant and lubricant, I am preforming the stone by hand and basically just rounding it off and grinding a flat spot on top of it.
Here I'm using a fiber optic light to show that I've got it pretty round, and you can see the flat spot in the middle that will eventually be the table of the stone.
Next, I'm heating up the "dop" which is a brass stick that I'll attach the stone to using a special wax. This stick will then be plugged into the arm of the faceting machine.
Here I have the stone stuck to the dop, and before the wax cools to become hard, I have placed it into the transfer jig and used a cone dop pressed down on it to center it perfectly.
Here's a front view of the faceting head of the machine. You can see where the dop plugs into the end of the arm in the lower part of the photo. The arm raises and lowers in degrees and rotates in equal increments. In other words, if it has a 96 index gear on the top end, it rotates in a circle divisible by 96 equal segments. Also, the entire head slides up and down the stainless steel mast and can be locked into place at any position.
Looking more downward on the faceting head, you can see the black, replaceable index gear and see that the entire arm, gear, etc. pivot on a big hinge of sorts. To the left is the square cutting depth indicator, and once I've completed the first in a series of facets, or flat spots, a needle will rise up and show me when I've cut all the following facets to the same exact depth as the first one.
From this view, you can see the crank at right that raises and lowers the arm in degrees. Notice the little black gauge next to it that tells what angle the machine is set at. In this case, 45 degrees. Also, the white knob is the locking mechanism that clamps the head down at a certain height on the stainless steel mast.
Okay, here we go. In this photo I've inserted the dop into the end of the arm and have locked it in place with the "key" in the upper right. Now we're ready to start cutting.
First, I'm going to set the arm at 90 degrees and cut a series of flat spots around the edge, or girdle, of the stone and make it perfectly round.
Here's a zoomed in look at cutting the girdle. I lower the arm down onto the spinning lap, make a little flat spot, rotate the arm a small amount and repeat, all the way around the stone.
Here's what it looks like after being rounded off. Notice all the little flat spots. Later, I'll smooth those off on an ultra-fine diamond lap.
Next, it's time to raise the faceting head up the mast, change the angle, and begin cutting the facets that will form the point at the bottom of the stone. This point is called the "culet" of the stone. In the upper left corner of the photo, you'll notice the water dripping from a white tube. Again, this is the coolant and lubricant that keeps the stone from heating up, melting the wax, and falling off the dop. The stainless steel lap is now spinning fairly fast.
Now, I've gone all the way around the stone and cut 16 rough facets that will allow me to establish the depth of the "pavilion," which is the bottom of the stone. Next, I'll change to a finer grit diamond lap and begin the final cutting of smaller facets that will be all ready for polishing.
Here you can see the design I've chosen, or made up in this case. It's a Portuguese style pattern that has twice as many facets as a standard round brilliant. Next, the time consuming process of polishing an extremely hard sapphire.
Here I'm using a fine diamond paste on an aluminum lap. The aluminum transfers the heat out of the sapphire a lot better than other polishing laps and lets me polish harder without melting the wax that holds the stone on the dop. It can be a real nightmare when the stone shifts or falls off.
Here you can see that I've polished some of the facets. Not the greatest photo, but you get the idea.
In this photo, I've polished the entire pavilion and it's ready to be transferred to a cone dop, so that I can cut the "crown" or top of the stone.
This is the transfer jig. At the top of the photo is the dop with the stone still attached. At the bottom of the photo is the cone dop that I've covered in hot wax and made an impression in by sliding the two together, then pulling them apart. Next, I'll put one drop of crazy glue into the wax impression in the dop at the bottom of the photo and slide the jig to put the two together.
The jig was sitting up on end but is now sitting down flat, which I did after sticking the new dop to the stone using the crazy glue. The dop on the left is the one receiving the stone and is in a metal clamp device that slides on the two black rails at the bottom of the photo. The clamp on the right is fixed on the rails. Thumbscrews tighten the clamps down to hold the dops in place. After the glue has dried, I'll remove both dops from the jig and melt the original one off using the alcohol lamp.
Next, I'll plug the dop with the stone on it back into the machine and start cutting the facets of the crown. Notice you can still see a little wax in the middle of the stone from where the original dop was stuck onto it.
Now, I've cut and polished all three rows of 16 facets that make up the crown of the stone. LOOK! It's starting to tease us a little with some blue sparkles. This is where it starts to get kind of exciting, because the first signs of what it will look like are starting to show. You can see that now I need to cut the "table" or flat spot on the top of the stone.
Cutting and polishing the table requires the use of this adapter that is plugged into the arm of the machine.
After the table is cut and polished, which can take awhile with a bigger sapphire like this, the last step is to polish the "girdle" or edge of the stone. A lot of cutters don't like to hassle with it, but I always polish it because it would look ugly and be quite obvious especially in a prong-type mounting.
HOORAY!!!! It's done! But wait, it still doesn't look like much. Here's a good lesson on why you should keep your stones clean. Having the pavilion all gooped up kills the brilliance. In this case it's because of crazy glue and wax, but hand lotion can really do a number, too. Now for the best part of the whole process. It's hard to tell what it really looks like until you remove it from the dop and clean the goop off it. Hmmm. It looks a little different than it did at the top of the page!
IS THAT AMAZING OR WHAT?
